SMTP Settings - CRM6.2P1US6.2

1. Problem Statement

User Roles Identified

• System Admin (IT Director): Responsible for IT infrastructure, security protocols, and system configurations
• Utility Administrator: Primary SMART360 system administrator managing system settings and configurations

Pain Points by User Role

System Admin (IT Director):

• Difficulty in managing email delivery configurations across multiple utility systems
• Lack of centralized SMTP configuration management causing security vulnerabilities
• Unable to implement consistent email authentication protocols across all systems
• Time-consuming manual configuration of email settings for each system component
• Insufficient visibility into email delivery performance and failure rates

Utility Administrator:

• Complex email configuration requirements that require IT expertise
• Inability to test email configurations before implementing in production
• Difficulty troubleshooting email delivery issues without technical knowledge
• Manual process to configure different email providers for various system notifications
• Risk of system downtime due to incorrect email configurations

Core Problem

The utility lacks a centralized, user-friendly interface for configuring and managing SMTP email settings across the SMART360 system, leading to inconsistent email delivery, security vulnerabilities, and operational inefficiencies.

2. Who Are the Users Facing the Problem?

System Admin (IT Director):

• Oversees all IT infrastructure and security protocols
• Manages system integrations and vendor configurations
• Ensures compliance with cybersecurity standards
• Should have full access to all SMTP configuration features

Utility Administrator:

• Primary system administrator for SMART360
• Manages system settings and business process configurations
• Coordinates between IT and business departments
• Should have access to basic SMTP configuration with IT approval for security-sensitive settings

3. Jobs To Be Done

For System Admin (IT Director): When I need to configure secure email delivery settings for the SMART360 system, But I currently manage multiple disconnected email configurations across different system components with limited visibility into delivery performance, Help me centralize SMTP configuration management with comprehensive security controls and monitoring capabilities, So that I can ensure reliable email delivery while maintaining cybersecurity standards and reducing administrative overhead.

For Utility Administrator: When I need to set up email notifications and system communications for business processes, But I struggle with complex technical email configurations that require IT expertise and cannot easily test settings before deployment, Help me configure email settings through an intuitive interface with guided setup and testing capabilities, So that I can ensure business-critical notifications are delivered reliably without depending on IT for routine configuration changes.

4. Solution

The SMTP Settings Configuration module provides a comprehensive email configuration management system that enables secure, reliable email delivery for all SMART360 system communications.

Key Capability Areas

1. SMTP Server Configuration

• Host server address configuration with validation
• Port number management with standard port suggestions
• Connection protocol selection (SMTP, SMTPS, SMTP with STARTTLS)

2. Authentication Management

• Multiple authentication protocol support (LOGIN, PLAIN, CRAM-MD5)
• Secure credential storage and management
• Email provider selection with pre-configured templates

3. Security and Encryption

• TLS/SSL encryption configuration
• Certificate verification settings
• Security protocol compliance validation

4. Connection Management

• Maximum concurrent connections control
• Connection timeout and retry configuration
• Idle timeout management for resource optimization

5. Email Delivery Controls

• Custom header configuration for email tracking
• HELO hostname specification for server identification
• Email provider integration templates

6. Testing and Validation

• Built-in connection testing functionality
• Email delivery test capabilities
• Configuration validation before deployment

7. Monitoring and Analytics

• Connection status monitoring
• Delivery performance tracking
• Failed delivery alerts and notifications

5. Major Steps Involved

Step 1: Access Configuration Interface

• Navigate to Settings menu from main navigation
• Click on "SMTP" from settings submenu
• System displays SMTP Settings page with "Configure your SMTP server settings for email delivery" header
• User sees empty configuration form if no existing setup

Step 2: Basic Server Configuration

• Click in "Host" field (currently showing placeholder "smtp.example.com")
• Enter email provider's SMTP server address (e.g., "smtp.gmail.com")
• System validates domain format in real-time
• Navigate to "Port" field (shows default "587")
• Use increment/decrement buttons or manually enter port number
• System highlights if non-standard port is selected

Step 3: Authentication Setup

• Click "Auth Protocol" dropdown (currently showing "LOGIN")
• Select appropriate protocol: LOGIN, PLAIN, or CRAM-MD5
• System displays protocol description tooltip
• Enter username in format "user@example.com" in Username field
• Click Password field and enter secure credentials
• System masks password input with dots

Step 4: Provider and Security Configuration

• Click "Email Provider" dropdown (showing "Select email provider")
• Choose from list: Gmail, Office 365, Yahoo, Custom, etc.
• System auto-populates recommended settings if provider template selected
• Configure "HELO Hostname" (defaults to "localhost")
• Click "TLS" dropdown and select "STARTTLS" (recommended option shown)
• System displays encryption description: "TLS/SSL encryption; STARTTLS is commonly used"

Step 5: Connection Management

• Review "Max Connections" field (default "10")
• Use increment/decrement or enter custom value based on email volume needs
• Set "Retries" count (default "3") for failed delivery attempts
• Configure "Idle Timeout" (default "30s") for connection cleanup
• Set "Wait Timeout" (default "30s") for response waiting

Step 6: Advanced Configuration

• Click in "Custom Headers" text area
• Add custom headers in format "X-Custom-Header: value"
• Example entries: ---

X-Mailer: SMART360-System
X-Priority: 1
X-Source: UtilityNotifications

• Each header on separate line following RFC 2822 format

Step 7: Configuration Testing

• Click "Test Connection" button at bottom of form
• System displays loading indicator "Testing connection..."
• Wait for test results (typically 5-15 seconds)
• Success Path: Green checkmark with "Connection successful" message
• Failure Path: Red error icon with specific error message like:
  • "Authentication failed - check credentials"
  • "Connection timeout - verify host and port"
  • "TLS handshake failed - check encryption settings"

Step 8: Error Resolution (if test fails)

• Review error message for specific issue
• Common fixes:
  • Verify host server address spelling
  • Check if port is blocked by firewall
  • Confirm username/password accuracy
  • Validate authentication protocol compatibility
• Modify configuration based on error type
• Re-run "Test Connection" until successful

Step 9: Configuration Activation

• Once test passes, click "Save" button
• System validates all required fields are completed
• Configuration is saved with current timestamp
• Toggle "Active" switch to ON position (top right)
• System displays confirmation: "SMTP configuration activated successfully"

Step 10: Verification and Monitoring

• System sends test email to admin's email address
• Check inbox for delivery confirmation
• Monitor system notifications for any delivery issues
• Access email delivery logs from monitoring dashboard
• Set up alerts for authentication failures or connection issues

Alternative Flows:

Modify Existing Configuration:

• If configuration exists, form pre-populates with current values
• User can modify any field while maintaining others
• System highlights changed fields for review
• Test connection validates only modified components
• Save updates existing configuration rather than creating new

Multiple Provider Setup:

• Click "Add New" button to create additional SMTP configuration
• System opens new configuration panel
• Complete same steps for secondary provider (backup/failover)
• Only one configuration can be active at a time
• Switch between configurations using provider dropdown

Error Handling:

• Network Issues: Display "Connection timeout" with retry option
• Invalid Credentials: Show "Authentication failed" with credential reset link
• Port Blocking: Alert "Port may be blocked" with alternative port suggestions
• Invalid Format: Highlight fields with format errors in red
• Unsaved Changes: Warn user before leaving page with unsaved modifications

Post-Conditions:

• SMTP configuration is successfully saved and activated
• Test email delivery confirms functionality
• System can send notifications and alerts via configured SMTP
• Admin receives confirmation of successful setup
• Configuration is logged in system audit trail

Success Metrics:

• Configuration completed without IT support ticket
• Test connection passes on first or second attempt
• Email delivery begins working immediately after activation
• No configuration-related errors in first 24 hours

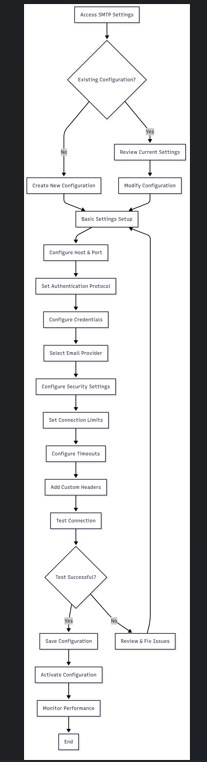

6. Flow Diagram

7. Business Rules

Header and Navigation Elements

SMTP Settings Page Title

• Must display "SMTP Settings" as main page header
• Header must be non-editable static text
• Must remain visible during page scrolling
• Text content cannot be modified by user actions

Configuration Description Text

• Must display "Configure your SMTP server settings for email delivery" as subtitle
• Text must be informational and non-interactive
• Cannot be edited or modified by users
• Must appear below main header consistently

Action Buttons

Save Button

• Must validate all required fields contain valid data before enabling
• Cannot execute save operation if mandatory fields are empty
• Must perform complete field validation including format checking
• Should display loading state during save operation
• Must create audit log entry with timestamp and user identification
• Cannot save configuration if connection test has not been performed successfully
• Must display confirmation message upon successful save
• Should show specific error messages if save operation fails
• Must update last modified timestamp in configuration record

Add New Button

• Must be available regardless of existing configuration status
• Cannot be disabled based on current configuration state
• Must open clean configuration form without pre-populated values
• Should allow creation of unlimited configurations within system limits
• Must maintain existing configurations when creating new ones
• Cannot overwrite or modify existing configurations
• Must provide unique identification for each new configuration created

Test Connection Button

• Cannot be clicked until all required fields contain valid data
• Must validate host, port, username, and password fields before execution
• Should display loading indicator during connection test process
• Must attempt actual connection to specified SMTP server
• Cannot exceed 60-second timeout for connection testing
• Must verify authentication credentials during test
• Should test TLS/encryption negotiation if encryption is enabled
• Must display specific error messages for different failure types
• Cannot allow configuration save if connection test fails
• Must log all test attempts with results and timestamps

Configuration Status Controls

Active/Inactive Toggle Switch

• Must default to inactive state for all new configurations
• Cannot be activated until configuration passes connection test
• Must immediately disable email sending when toggled to inactive
• Should display current state visually (active/inactive indication)
• Cannot have multiple configurations active simultaneously
• Must require confirmation before deactivating if emails are queued
• Should log all state changes with user and timestamp
• Must prevent activation if required fields are incomplete

Configuration Delete Button (Trash Icon)

• Must display confirmation dialog before deletion
• Cannot delete configuration if it is currently active
• Must require toggle to inactive before allowing deletion
• Should warn about impact on email delivery functionality
• Cannot be undone once deletion is confirmed
• Must remove all associated configuration data permanently
• Should create audit trail entry for deletion action
• Cannot delete if it's the only existing configuration

Server Connection Fields

Host Input Field

• Must accept only valid domain names or IP addresses
• Cannot be empty - required field validation must enforce this
• Should validate domain format in real-time during input
• Must accept IPv4 addresses in dotted decimal notation (xxx.xxx.xxx.xxx)
• Should support IPv6 addresses in bracket notation
• Cannot accept localhost or 127.0.0.1 in production environments
• Must trim leading and trailing whitespace automatically
• Should validate DNS resolution during connection test
• Cannot exceed 253 characters maximum length
• Must reject input containing invalid characters for domain names

Port Number Field

• Must accept only numeric values between 1 and 65535
• Should default to 587 for new configurations
• Cannot accept negative numbers, zero, or decimal values
• Must validate port is within valid TCP port range
• Should display warning for non-standard ports (not 25, 465, 587, 2525)
• Cannot be empty - must contain valid port number
• Must update value immediately when increment/decrement controls are used
• Should revert to previous valid value if invalid input is detected

Port Increment/Decrement Controls

• Must increase/decrease port value by exactly 1 per click
• Cannot increase port value above 65535 maximum
• Cannot decrease port value below 1 minimum
• Should disable increment button when maximum value is reached
• Should disable decrement button when minimum value is reached
• Must update port field value in real-time
• Cannot function if port field contains invalid data

Authentication Fields

Authentication Protocol Dropdown

• Must include LOGIN, PLAIN, and CRAM-MD5 options minimum
• Should default to LOGIN for new configurations
• Cannot be empty - must have a selected value
• Must validate selection matches email provider capabilities
• Should display authentication method description on selection
• Cannot allow custom/unlisted authentication methods
• Must log authentication method selection for security audit
• Should warn if less secure method (PLAIN) is selected over encrypted alternatives

Email Provider Dropdown

• Must include Gmail, Office 365, Yahoo, Outlook, Exchange, and Custom options
• Should auto-populate host, port, TLS settings when provider is selected
• Cannot override user's manually entered values when provider changes
• Must validate consistency between selected provider and manual host entry
• Should display "Select email provider" placeholder when no selection made
• Cannot be required field - Custom option allows manual configuration
• Must provide provider-specific configuration recommendations
• Should update available authentication methods based on provider capabilities

Username Field

• Must accept email address format (user@domain.com)
• Should validate email format if @ symbol is present
• Cannot be empty - required field for authentication
• Must accept plain usernames without @ symbol for some providers
• Should trim leading and trailing whitespace
• Cannot contain line breaks or control characters
• Must store value securely with encryption
• Should display placeholder "your-email@example.com"
• Cannot exceed 320 characters (RFC 5321 email address limit)

Password Field

• Must mask all input characters for security
• Cannot display actual password value after initial entry
• Must be required field - cannot be empty
• Should accept all printable characters including special symbols
• Cannot be stored in plain text - must use strong encryption
• Must not appear in any system logs or debugging output
• Should provide show/hide toggle for password visibility during entry
• Cannot have maximum length restrictions that would prevent secure passwords
• Must validate password meets minimum complexity if provider requires it

Advanced Configuration Fields

HELO Hostname Field

• Should default to "localhost" if left empty
• Must accept valid domain name format only
• Cannot contain spaces or invalid domain characters
• Should use organization's actual domain name for optimal deliverability
• Cannot be required field - system can function with default value
• Must validate domain format if value is entered
• Should not exceed 255 characters maximum length
• Cannot contain protocol prefixes (http://, https://)

TLS Encryption Dropdown

• Must include STARTTLS, SSL/TLS, and None options
• Should default to STARTTLS for new configurations
• Cannot be empty - must have encryption selection
• Must validate compatibility with selected port number
• Should enforce SSL/TLS for port 465 configurations
• Cannot allow unencrypted connections on standard secure ports
• Must display security level description for each option
• Should warn user if "None" (no encryption) is selected

Maximum Connections Field

• Must default to 10 concurrent connections
• Cannot accept values less than 1 or greater than 100
• Should accept only positive integer values
• Cannot contain decimal points or negative numbers
• Must validate against email provider connection limits
• Should warn if value exceeds recommended limits for provider
• Cannot be empty - must contain valid connection count
• Must enforce connection limit during actual email operations

Max Connections Increment/Decrement Controls

• Must increase/decrease connection count by exactly 1 per click
• Cannot increase value above 100 maximum limit
• Cannot decrease value below 1 minimum limit
• Should disable buttons when respective limits are reached
• Must update connections field value immediately
• Cannot function if connections field contains invalid data

Retries Field

• Must default to 3 retry attempts
• Cannot accept negative values or exceed 10 maximum retries
• Should accept 0 retries for immediate failure handling
• Cannot contain decimal values - integers only
• Must be applied with exponential backoff between attempts
• Should count original attempt plus retries in total attempts
• Cannot be empty - must contain valid retry count
• Must stop retry attempts when maximum count is reached

Retries Increment/Decrement Controls

• Must increase/decrease retry count by exactly 1 per click
• Cannot increase value above 10 maximum retries
• Cannot decrease value below 0 minimum
• Should disable buttons when limits are reached
• Must update retries field immediately
• Cannot operate if retries field has invalid data

Idle Timeout Field

• Must default to 30 seconds (displayed as "30s")
• Cannot accept values less than 10 seconds or greater than 300 seconds
• Should display time unit "s" suffix automatically
• Cannot accept non-numeric values or negative numbers
• Must close idle connections when timeout period expires
• Should validate timeout is reasonable for email operations
• Cannot be empty - must contain valid timeout value
• Must apply timeout consistently to all SMTP connections

Wait Timeout Field

• Must default to 30 seconds (displayed as "30s")
• Cannot accept values less than 5 seconds or greater than 120 seconds
• Should display time unit "s" suffix automatically
• Cannot exceed total connection timeout duration
• Must trigger timeout error if server response exceeds limit
• Should be configured appropriately for email provider response times
• Cannot be empty - must contain valid timeout value
• Must apply to all SMTP command-response cycles

Custom Headers Text Area

• Must accept multi-line input with one header per line
• Should validate RFC 2822 header format: "Header-Name: Header-Value"
• Cannot modify standard SMTP headers (From, To, Subject, Date)
• Must accept header names containing letters, numbers, and hyphens only
• Should allow header values with spaces and printable characters
• Cannot exceed 8KB total size for all custom headers combined
• Must preserve line breaks and formatting as entered
• Should validate header names don't conflict with system-generated headers
• Cannot contain malicious content or script injections
• Must be included in all outbound emails when configuration is active

Field Interdependencies and Validation Rules

Host and Port Compatibility

• Port 465 must be used with SSL/TLS encryption only
• Port 587 should default to STARTTLS encryption
• Port 25 should display warning about potential ISP blocking
• Gmail hosts must use ports 465 or 587 only
• Office 365 hosts must use port 587 with STARTTLS

Provider-Specific Validation

• Gmail configurations must use OAuth2 or app-specific passwords
• Office 365 must have modern authentication enabled
• Yahoo configurations should warn about less secure app access
• Custom providers must have all fields manually configured
• Provider selection must validate against entered host field

Security Requirement Enforcement

• Unencrypted connections must display security warnings
• Production environments cannot use localhost or internal IPs
• Password complexity must meet provider minimum requirements
• Authentication failures must not expose credential details in error messages
• All configuration changes must be logged for security audit

Connection Testing Validation

• Test must verify host resolution before connection attempt
• Authentication test must use provided credentials
• Encryption test must verify TLS handshake if enabled
• Timeout tests must respect configured timeout values
• Failed tests must prevent configuration activation
• Successful tests must be logged with connection details

8. Sample Data

Sample SMTP Configuration - Gmail

Host: smtp.gmail.com
Port: 587
Auth Protocol: LOGIN
Username: system-notifications@utilitycompany.com
Password: [app-specific-password]
Email Provider: Gmail
HELO Hostname: mail.utilitycompany.com
TLS: STARTTLS
Max Connections: 10
Retries: 3
Idle Timeout: 30s
Wait Timeout: 30s
Custom Headers:
  X-Mailer: SMART360-System
  X-Priority: 1

Sample SMTP Configuration - Office 365

Host: smtp.office365.com
Port: 587
Auth Protocol: LOGIN
Username: smart360@utilitycompany.onmicrosoft.com
Password: [secure-password]
Email Provider: Office 365
HELO Hostname: localhost
TLS: STARTTLS
Max Connections: 5
Retries: 2
Idle Timeout: 45s
Wait Timeout: 60s
Custom Headers:
  X-Source-System: SMART360
  X-Environment: Production

9. Acceptance Criteria

1. The system must display SMTP Settings page with all configuration fields visible and properly labeled
2. The system must provide an Active/Inactive toggle that controls SMTP configuration state
3. The system must validate host field input to ensure proper domain name or IP address format
4. The system must provide port number field with increment/decrement controls and default value of 587
5. The system must offer authentication protocol dropdown with LOGIN, PLAIN, and CRAM-MD5 options
6. The system must provide secure password field with masked input display
7. The system must include email provider dropdown with major email service options
8. The system must offer HELO hostname configuration with default 'localhost' value
9. The system must provide TLS encryption dropdown with STARTTLS as recommended option
10. The system must include maximum connections field with numeric validation and default value of 10
11. The system must provide retries field with increment/decrement controls and default value of 3
12. The system must offer timeout configuration fields with seconds unit indicator and 30s default
13. The system must include multi-line custom headers text area for advanced configuration
14. The system must provide "Test Connection" button that validates all configuration settings
15. The system must display appropriate success/error messages for connection testing results
16. The system must include "Save" button that persists configuration after successful validation
17. The system must provide "Add New" button for creating additional SMTP configurations
18. The system must prevent saving invalid configurations and display specific error messages
19. The system must maintain configuration state across user sessions and system restarts
20. The system must log all configuration changes with user identification and timestamp

10. Process Changes

11. Impact from Solving This Problem

12. User Behavior Tracking

System Admin (IT Director) Tracking

Utility Administrator Tracking

System Performance Tracking

Link - https://preview--crmcopy1.lovable.app/contacts
