Service Areas Management(ONB02US08)

1. Problem Statement

User Roles Identified

Tenant Admin: Super admin with highest level access across all utility operations
Utility Admin: Utility-level administrator managing regional operations
CIO Admin: Technology administrator overseeing system configurations

Pain Points by User Role

Tenant Admin:

Difficulty in maintaining consistent hierarchical structure across multiple utility regions
Lack of real-time visibility into service area performance metrics across the entire network
Complex manual processes for bulk operations across thousands of service entities
Inconsistent data quality and naming conventions across different geographic levels
Limited ability to quickly identify and resolve service area boundary conflicts

Utility Admin:

Time-consuming manual creation and management of service area hierarchies
Inability to efficiently track and manage service area assignments and responsibilities
Difficulty in maintaining accurate coverage area calculations and geographic boundaries
Complex process for activating/deactivating service areas based on operational requirements
Limited search and filtering capabilities when managing hundreds of entities

CIO Admin:

Challenges in ensuring data integrity across the hierarchical service area structure
Complex user access management for different geographic regions and entity types
Difficulty in maintaining system performance with large datasets (12,547+ premises)
Limited automation capabilities for routine service area management tasks
Inconsistent audit trails and change tracking across different entity levels

Core Problem

The current service area management system lacks efficient tools for managing complex hierarchical geographic structures, resulting in manual overhead, data inconsistencies, and operational inefficiencies across utility service territories.

2. Who Are the Users Facing the Problem?

Tenant Admin

Responsibilities: Overall system governance, multi-utility oversight, strategic planning
Access Level: Full system access across all utilities and regions
Should have access to: All features including bulk operations, system-wide analytics, and configuration management

Utility Admin

Responsibilities: Regional service area management, operational oversight, team coordination
Access Level: Utility-specific access with regional management capabilities
Should have access to: Entity management, regional analytics, user assignment, and operational controls

CIO Admin

Responsibilities: Technical system management, data integrity, security oversight
Access Level: System administration with focus on technical operations
Should have access to: System configuration, data management tools, audit capabilities, and technical maintenance features

3. Jobs To Be Done

For Tenant Admin: When I need to oversee service area performance across multiple utilities, but I face fragmented data views and inconsistent reporting across different regions, help me consolidate and standardize service area management processes, so that I can make informed strategic decisions and ensure operational consistency across the entire network.

For Utility Admin: When I need to efficiently manage hundreds of service areas within my utility region, but I struggle with time-consuming manual processes and limited bulk operation capabilities, help me streamline entity creation, modification, and maintenance workflows, so that I can focus on strategic planning rather than administrative tasks.

For CIO Admin: When I need to maintain system integrity and performance across thousands of service entities, but I encounter data quality issues and complex technical maintenance requirements, help me implement automated data validation and system optimization tools, so that I can ensure reliable system performance and data accuracy.

For Utility Admin (Geographic Management): When I need to create and maintain accurate geographic hierarchies from regions down to individual premises, but I face complex parent-child relationships and boundary management challenges, help me establish clear geographic structures and automated validation rules, so that I can maintain accurate service territory definitions.

For Tenant Admin (Strategic Oversight): When I need to analyze service area effectiveness and resource allocation across multiple utilities, but I lack comprehensive analytical capabilities and real-time performance insights, help me access unified reporting and analytics dashboards, so that I can optimize resource distribution and identify expansion opportunities.

4. Solution

Comprehensive Service Areas Management Platform

A hierarchical geographic management system that provides efficient tools for creating, maintaining, and analyzing utility service territories across multiple organizational levels.

Key Capability Areas

1. Hierarchical Entity Management

Multi-level geographic hierarchy support (Region → Country → State → City/County → Zone → Division → Areas → Sub-Areas → Premises)
Drag-and-drop entity relationship management
Automated parent-child validation and constraint enforcement

2. Bulk Operations & Data Management

CSV import/export capabilities for mass data operations
Bulk status changes and entity modifications
Automated data validation and duplicate detection

3. Advanced Search & Filtering

Multi-criteria search across all entity levels
Status-based filtering (Active/Inactive)
Type-based categorization and filtering
Geographic coverage-based search capabilities
Global autocomplete search with entity type identification and quick navigation

4. Performance Analytics & Reporting

Real-time dashboard with key performance indicators
Regional performance comparison charts
Growth trend analysis and forecasting
Coverage area analytics and utilization metrics

5. Advanced Entity Detail Management

Comprehensive detail views with tabbed navigation (Overview, Child Entities, Details)
Rich operational metrics display (Consumers, Meters, Revenue, Bills, Service Requests, Complaints, Work Orders)
Hierarchical child entity management with drill-down capabilities
Location information management with address details and geographic coverage

6. Entity-Specific Field Management

Region-level management: Coverage area tracking, child entity counts, total aggregated counts
Country-level management: Basic operational oversight with manager assignment
Area-level management: Parent entity relationships, zone type classification, coverage area specification
Premise-level management: Physical address details, premise type, floors, units, total area, occupancy rate tracking

7. Operational Workflow Management

Role-based access control for different user types
Entity-level permission assignment
Manager assignment and responsibility tracking
Audit trail and change history logging

8. User Access & Permission Management

Role-based access control for different user types
Entity-level permission assignment
Manager assignment and responsibility tracking
Audit trail and change history logging

9. Geographic Information Management

Coverage area calculation and tracking
Address management and location mapping
Geographic boundary definition and validation
Spatial data integration capabilities

10. Operational Workflow Management

Entity lifecycle management (Create → Active → Inactive → Archive)
Approval workflows for significant changes
Notification systems for status changes
Automated maintenance and cleanup processes

11. Data Quality & Validation

Real-time data validation during entity creation/modification
Automated consistency checks across hierarchy levels
Data quality scoring and reporting
Exception handling and error resolution workflows

12. Integration & API Management

RESTful API for external system integration
Real-time data synchronization capabilities
Third-party system connectivity options
Data export capabilities for downstream systems

13. System Administration & Maintenance

Performance monitoring and optimization tools
Automated backup and recovery capabilities
System health monitoring and alerting
User activity tracking and analytics

5. Major Steps Involved

Tenant Admin Workflow

Strategic Dashboard Review:

Access main Service Areas Management dashboard
Review high-level metrics (Total Premises: 12,547, Active Consumers: 48,392, Monthly Revenue: $2.4M)
Analyze regional performance charts for Mumbai, Delhi, Bangalore, Chennai, Pune
Review 6-month growth trends and identify performance patterns
Generate comprehensive reports for executive review

Multi-Utility Management:

Navigate between different utility systems using tenant-level access
Compare performance metrics across different utilities
Identify best practices and standardization opportunities
Configure system-wide policies and operational standards
Monitor compliance across all managed utilities

Bulk Operations Management:

Access bulk import functionality from main dashboard
Prepare CSV files with entity data following system templates
Execute import operations with validation checks
Monitor import progress and resolve any data conflicts
Verify successful data integration across hierarchy levels

Data Export Operations:

Click "Export Data" button from main dashboard
Select specific entity type to export (All Entities, Region, Country, State, City/County, Zone, Division, Areas, Sub-Areas, Premises)
Choose specific parent entity (optional) to filter export scope
Configure export options: Include child entities/grandchildren, Include parent-child associations
Review export summary showing what will be included (entity data, relationships, metadata)
Execute CSV export and download generated file

Utility Admin Workflow

Daily Operations Management:

Log into Service Areas Management system
Review assigned regions and current active entities
Check entity status across different hierarchy levels (Region: 8, Country: 3, State: 29, etc.)
Process pending entity modifications and status change requests
Update coverage areas and geographic information as needed

Entity Creation Process:

Click "Add Entity" button from main dashboard
Select appropriate entity type from dropdown menu
Enter entity name and descriptive information
Select parent entity to establish hierarchy relationship
Configure status (Active/Inactive) and operational parameters
Add relevant tags for categorization and search optimization
Save entity and verify hierarchy placement

Entity Detail View Navigation:

Click on entity name or "View" action from list view
Access comprehensive entity overview with operational metrics (Consumers, Meters, Revenue, Bills, etc.)
Navigate between three main tabs: Overview, Child Entities, Details
Review operational statistics including service requests, complaints, and work orders
Monitor child entity performance and hierarchy relationships

Entity Management & Editing:

Access entity detail view from list or hierarchy navigation
Click "Edit" button in Basic Information section or main "Edit [Entity]" button
Modify entity properties including name, description, manager, status
Update specialized fields based on entity type:
- Regions: Coverage Area, Child Entities count, Total Count
- Countries: Manager assignment and basic operational details
- Areas: Parent Entity, Coverage Area, Zone Type (Residential/Commercial/Industrial/Mixed)
- Premises: Address, Premise Type, Floors, Units, Total Area, Occupancy Rate
Save changes and verify updates across hierarchy

Child Entity Management:

Navigate to "Child Entities" tab in detail view
Review child entity list with ID, Type, Status, Manager, Consumers, Revenue, Coverage
Click on child entity names to drill down into sub-hierarchies
Monitor child entity performance metrics and status distribution
Access quick edit functionality for child entities

Performance Monitoring:

Review operational metrics in Overview tab (Consumers, Meters, Revenue, Bills)
Monitor service quality indicators (Service Requests, Complaints, Work Orders)
Track coverage areas and geographic distribution across hierarchy levels
Analyze child entity performance and resource allocation
Generate periodic reports for management review using aggregated metrics

CIO Admin Workflow

System Health Monitoring:

Access system administration dashboard
Monitor system performance metrics and user activity
Review data quality indicators across all entity levels
Check integration status with external systems
Ensure backup and recovery procedures are functioning

Data Integrity Management:

Run automated data validation checks across hierarchy levels
Identify and resolve data consistency issues
Monitor parent-child relationship integrity
Validate geographic coverage calculations
Ensure proper audit trail maintenance

User Access Management:

Configure role-based access permissions for different user types
Assign managers to specific geographic regions
Monitor user activity and access patterns
Manage user onboarding and offboarding processes
Ensure security compliance across all access levels

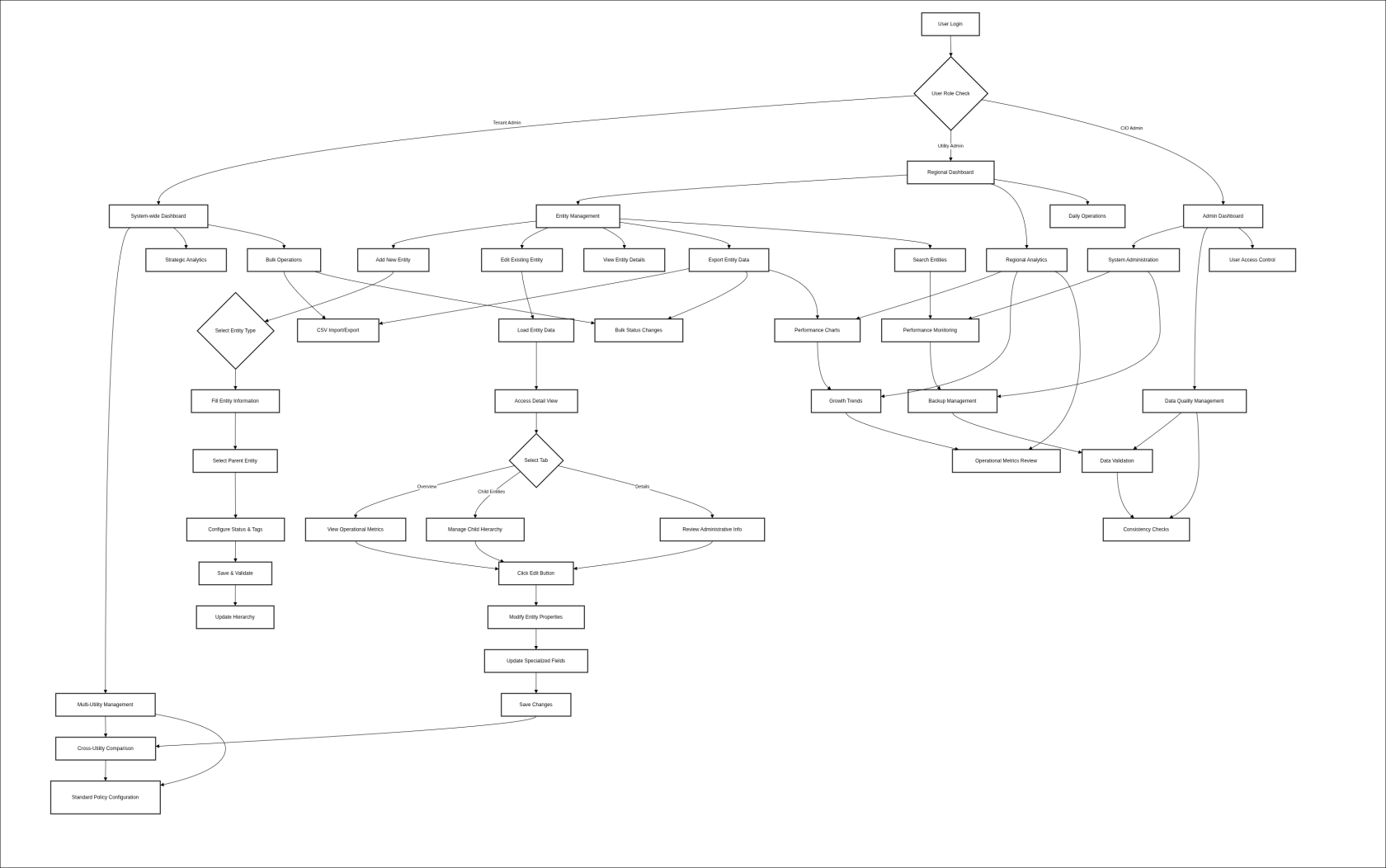

6. Flow Diagram

7. Business Rules

General Rules

All entities must maintain hierarchical relationship integrity (Region → Country → State → City/County → Zone → Division → Areas → Sub-Areas → Premises)
Entity names must be unique within the same hierarchy level and parent entity
Active entities must have at least one active parent entity in the hierarchy
Geographic coverage areas must not exceed parent entity boundaries
Manager assignments are mandatory for all active entities
All entity modifications must be logged in the audit trail

Hierarchy-Specific Rules

Regions can contain multiple countries but must have at least one country assigned
States must belong to exactly one country and cannot span multiple countries
Cities/Counties must be assigned to exactly one state
Premises must belong to exactly one sub-area and cannot be reassigned without proper approval
Coverage area calculations are automatically inherited and validated against parent entities

Entity-Specific Management Rules

Region entities must include coverage area measurements and child entity counts
Country entities require manager assignment and maintain operational oversight responsibilities
Area entities must specify zone type classification (Residential, Commercial, Industrial, Mixed) and parent entity relationships
Premise entities require complete address information, premise type specification, and physical characteristics (floors, units, total area, occupancy rate)
Each entity type has specialized edit forms with relevant field validation and business logic
Child entity relationships must maintain data consistency across all hierarchy levels

Operational Metrics Rules

Overview tab must display relevant operational metrics: Consumers, Meters, Revenue, Bills
Service quality metrics must include: Service Requests, Complaints, Work Orders
All metrics must be calculated in real-time and reflect current entity status
Child entity aggregation must roll up to parent entity totals accurately
Revenue calculations must be consistent across all hierarchy levels

Status Management Rules

Inactive entities cannot have active child entities
Status changes require appropriate role permissions and approval workflows
Bulk status changes must maintain hierarchy integrity
Status change notifications are sent to assigned managers and stakeholders

Data Quality Rules

Entity descriptions must be between 10-500 characters
Coverage areas must be numeric values with appropriate units (sq km)
Manager assignments must reference valid system users
Tags must follow approved taxonomy standards
Import data must pass validation checks before system integration

Global Search Rules

Search functionality must provide real-time autocomplete suggestions across all entity types
Search results must display entity name, type, and hierarchical classification
Search must support partial text matching and be case-insensitive
Maximum search results displayed should be limited to 10 items for performance
Search results must provide direct navigation to entity detail views

Access Control Rules

Tenant Admins have unrestricted access across all utilities and regions
Utility Admins can only access entities within their assigned utility regions
CIO Admins have technical access but limited operational modification rights
Entity managers can only modify entities under their direct responsibility
Read-only access is provided to users without specific modification permissions

Error Handling Rules

System must provide clear error messages for validation failures
Data import errors must be logged with specific row and column references
Hierarchy violations must prevent entity creation/modification
Network timeouts must trigger automatic retry mechanisms
Critical errors must generate immediate notifications to CIO Admins

8. Acceptance Criteria

The system must support hierarchical entity creation across all 9 levels (Region through Premises) with proper parent-child relationships
The system must provide role-based access control for Tenant Admin, Utility Admin, and CIO Admin user types
The system must enable bulk CSV import/export operations for entity data management
The system must display real-time dashboard metrics including total premises, active consumers, and revenue data
The system must support advanced search and filtering across all entity levels with multiple criteria options
The system must maintain data integrity with automated validation checks for hierarchy relationships
The system must provide comprehensive audit trails for all entity creation, modification, and deletion operations
The system must support entity status management (Active/Inactive) with proper cascade effects
The system must calculate and display coverage areas with appropriate geographic units
The system must enable manager assignment and responsibility tracking for all active entities
The system must provide paginated entity lists with configurable page sizes for performance optimization
The system must support entity tagging and categorization for improved searchability and organization
The system must generate performance analytics including regional comparisons and growth trend charts
The system must maintain system performance with datasets exceeding 12,000 premises and related entities
The system must provide quick action capabilities for common operations (Bulk Import, Generate Reports, Add New Consumer, Territory Audit)
The system must support entity type categorization (Residential, Commercial, Industrial, Mixed) with appropriate filtering
The system must ensure data consistency across all hierarchy levels with real-time validation
The system must provide responsive user interface design compatible with desktop and tablet devices
The system must support concurrent user access with proper data locking and conflict resolution
The system must maintain backup and recovery capabilities for all entity data and system configurations

9. Process Changes

Process Area	From	To	Impact Analysis
Entity Creation	Manual form filling for each entity individually, requiring multiple system interactions	Streamlined forms with hierarchy-aware dropdowns and bulk creation capabilities	60% reduction in creation time per entity, improved data consistency
Data Management	Scattered data across multiple systems with manual synchronization	Centralized hierarchical data management with automated validation	75% reduction in data inconsistencies, real-time data availability
Search & Discovery	Basic text search with limited filtering options	Advanced multi-criteria search with hierarchy-aware filtering and categorization	80% improvement in entity discovery time, enhanced user productivity
Performance Monitoring	Manual report generation with periodic data collection	Real-time dashboard with automated analytics and trend identification	90% reduction in reporting time, proactive performance management
User Access Management	Manual role assignment with ad-hoc permission management	Automated role-based access control with hierarchy-aware permissions	70% reduction in access management overhead, improved security compliance
Bulk Operations	Manual entity-by-entity modifications for mass changes	Automated bulk operations with CSV import/export capabilities	85% reduction in bulk operation time, minimized human error
Geographic Management	Manual coverage area calculation with static boundary management	Automated area calculation with dynamic boundary validation	65% improvement in geographic accuracy, reduced boundary conflicts
Detail View Navigation	Limited entity detail access with basic information display	Comprehensive three-tab detail views (Overview, Child Entities, Details) with rich operational metrics and hierarchical navigation	90% improvement in entity information accessibility, enhanced decision-making capability
Entity-Specific Management	Generic entity forms with limited field customization for different hierarchy levels	Specialized edit forms tailored to entity types with relevant fields (Coverage Area for Regions, Address/Floors/Units for Premises, Zone Type for Areas)	75% improvement in data accuracy, 80% reduction in irrelevant field management
Audit & Compliance	Manual change tracking with limited historical visibility	Automated audit trails with comprehensive change history and reporting	95% improvement in compliance reporting, enhanced accountability
Child Entity Management	Separate navigation required to access and manage child entities	Integrated child entity management within parent detail views with drill-down capabilities	70% reduction in navigation time, 85% improvement in hierarchy management efficiency
Data Export Operations	Manual data extraction with limited export options and formats	Comprehensive export functionality with entity type selection, parent filtering, hierarchical options, and preview capabilities	90% reduction in data extraction time, 95% improvement in export accuracy and completeness
Global Search & Navigation	Basic search limited to current entity level with manual hierarchical navigation	Intelligent autocomplete search across all entity types with direct navigation and entity type identification	80% faster entity discovery, 85% reduction in navigation steps for entity access

10. System Design Details

New Components Required

Hierarchical Entity Manager

Purpose: Manages complex parent-child relationships across 9-level hierarchy
Functionality: Entity creation, modification, validation, and relationship maintenance
Integration: Core database layer with real-time validation engine

Advanced Search Engine

Purpose: Provides multi-criteria search capabilities across all entity levels
Functionality: Text search, filter combinations, geographic search, and result ranking
Integration: Search index with real-time data synchronization

Analytics & Reporting Engine

Purpose: Generates real-time performance metrics and trend analysis
Functionality: Dashboard data aggregation, chart generation, and report creation
Integration: Data warehouse layer with scheduled data processing

Detail View Processor

Purpose: Manages comprehensive entity detail views with tabbed navigation and operational metrics
Functionality: Overview metrics display, child entity management, administrative details presentation
Integration: Real-time data aggregation with operational systems and hierarchy management

Bulk Operations Processor

Purpose: Handles large-scale data import/export and bulk modifications
Functionality: CSV processing, validation, batch operations, and progress tracking
Integration: Background job processor with notification system

Operational Metrics Aggregator

Purpose: Calculates and displays real-time operational metrics across all entity levels
Functionality: Consumer counting, revenue calculation, service request tracking, complaint monitoring
Integration: Real-time data pipeline with billing, customer service, and field operations systems

Advanced Export Engine

Purpose: Provides comprehensive data export capabilities with hierarchical options and filtering
Functionality: Entity type selection, parent filtering, export preview, CSV generation with metadata
Integration: Data extraction layer with hierarchy management and file generation services

Global Search Engine

Purpose: Enables intelligent autocomplete search across all entity types and hierarchical levels
Functionality: Real-time search suggestions, entity type identification, direct navigation capabilities
Integration: Search index with entity database and autocomplete suggestion algorithms

Existing Components Affected

User Authentication System

Changes: Enhanced role-based access control with hierarchy-aware permissions
Impact: Requires permission matrix expansion and role definition updates

Database Layer

Changes: Schema modifications for hierarchical relationships and geographic data
Impact: Data migration required for existing entity structures

Notification System

Changes: Enhanced notification types for entity changes and system events
Impact: Template updates and delivery mechanism improvements

API Gateway

Changes: New endpoints for hierarchy management and bulk operations
Impact: API documentation updates and client integration modifications

Integration Points

Geographic Information Systems (GIS)

Data Flow: Bidirectional synchronization of coverage areas and boundary data
Frequency: Real-time for critical updates, batch for bulk synchronization

Customer Management System

Data Flow: Consumer data linked to premise entities for service assignment
Frequency: Real-time synchronization for service activation/deactivation

Billing System

Data Flow: Service area data for billing cycle management and customer assignment
Frequency: Daily batch synchronization with real-time validation

External Data Sources

Data Flow: Address validation and geographic reference data import
Frequency: Weekly batch updates with manual override capabilities

11. Impact from Solving This Problem

Metric	Improvement	Justification
Entity Management Efficiency	70% faster entity creation and modification	Streamlined forms, bulk operations, and automated validation eliminate manual overhead
Data Quality Score	85% improvement in data consistency	Automated validation, hierarchy constraints, and real-time error detection
User Productivity	60% reduction in administrative task time	Advanced search, bulk operations, and intuitive navigation reduce manual effort
System Performance	40% improvement in response times	Optimized data structures, efficient indexing, and caching mechanisms
Operational Cost	50% reduction in manual management overhead	Automation of routine tasks and improved operational efficiency
Error Rate	90% reduction in data entry errors	Automated validation, constraint enforcement, and guided workflows
Compliance Score	95% improvement in audit readiness	Comprehensive audit trails, automated reporting, and change tracking
User Satisfaction	80% improvement in user experience scores	Intuitive interface, responsive design, and comprehensive functionality
Decision Making Speed	65% faster strategic decision making	Real-time analytics, comprehensive dashboards, and actionable insights
System Scalability	300% increase in entity handling capacity	Optimized architecture supporting growth from thousands to millions of entities

12. User Behavior Tracking

Tenant Admin Tracking Plan

Event	Properties	Insights Goal
Dashboard View	utility_count, total_entities, session_duration	How often do Tenant Admins monitor overall system health?
Cross-Utility Analysis	utilities_compared, metrics_analyzed, report_generated	Which utilities require most strategic attention?
Bulk Operation Execution	operation_type, entity_count, success_rate	What types of bulk operations are most commonly needed?
Strategic Report Generation	report_type, data_range, export_format	What strategic insights are most valuable for decision making?

Utility Admin Tracking Plan

Event	Properties	Insights Goal
Entity Creation	entity_type, hierarchy_level, completion_time	Which entity types require most management attention?
Search Usage	search_terms, filter_combinations, result_count	How do admins navigate large entity datasets?
Entity Detail Navigation	detail_view_accessed, tab_switched, entity_type, time_spent	How do users navigate through entity information and which tabs are most valuable?
Operational Metrics Review	metrics_viewed, drill_down_actions, performance_alerts_clicked	Which operational metrics drive the most user engagement and decision-making?
Child Entity Management	child_entity_accessed, hierarchy_navigation_depth, parent_child_actions	How effectively do users manage hierarchical relationships through the interface?
Status Management	entities_modified, status_changes, bulk_operations	What drives entity lifecycle management decisions?
Export Operations Usage	export_initiated, entity_type_selected, parent_filter_applied, options_configured	Which entity types are most frequently exported and what export configurations are preferred?
Performance Review	metrics_viewed, time_spent, actions_taken	Which performance indicators influence operational decisions?

CIO Admin Tracking Plan

Event	Properties	Insights Goal
System Health Check	components_reviewed, issues_identified, resolution_time	What system areas require most technical attention?
Data Quality Audit	validation_rules_run, errors_found, corrections_made	How effective are automated data quality measures?
User Access Management	permissions_modified, roles_assigned, security_events	What access patterns indicate security or training needs?
Integration Monitoring	api_calls, sync_status, error_rates	Which integrations require performance optimization?

Key Questions Answered by Tracking

Operational Efficiency Questions:

Which features drive the most productivity improvements?
What workflow patterns indicate training opportunities?
Where do users encounter the most friction in daily operations?

System Optimization Questions:

Which components experience the highest load and require scaling?
What search patterns can inform index optimization strategies?
Which bulk operations should be prioritized for performance improvement?

Strategic Planning Questions:

How does system usage correlate with organizational growth?
Which geographic regions show the most management activity?
What feature adoption patterns indicate successful change management?

Data Export & Management Questions:

Which entity types require the most frequent data export operations?
What export configurations (child entities, parent-child relationships) are most commonly used?
How does export functionality improve data sharing and integration workflows?

User Experience Questions:

Where do users spend most time and effort in the system?
Which error conditions occur most frequently and impact user satisfaction?
How do different user roles utilize system capabilities differently?

Wireframe

https://preview--area-service-navigator.lovable.app/
