Architecture Overview

High-Level Description

This document describes the deployment of a React 18 frontend and Django 4.2.7 backend application on Google Cloud Platform for SMART360, utilizing a microservices architecture with containerized deployments on Google Kubernetes Engine (GKE). The application uses REST APIs for communication between frontend and backend services.

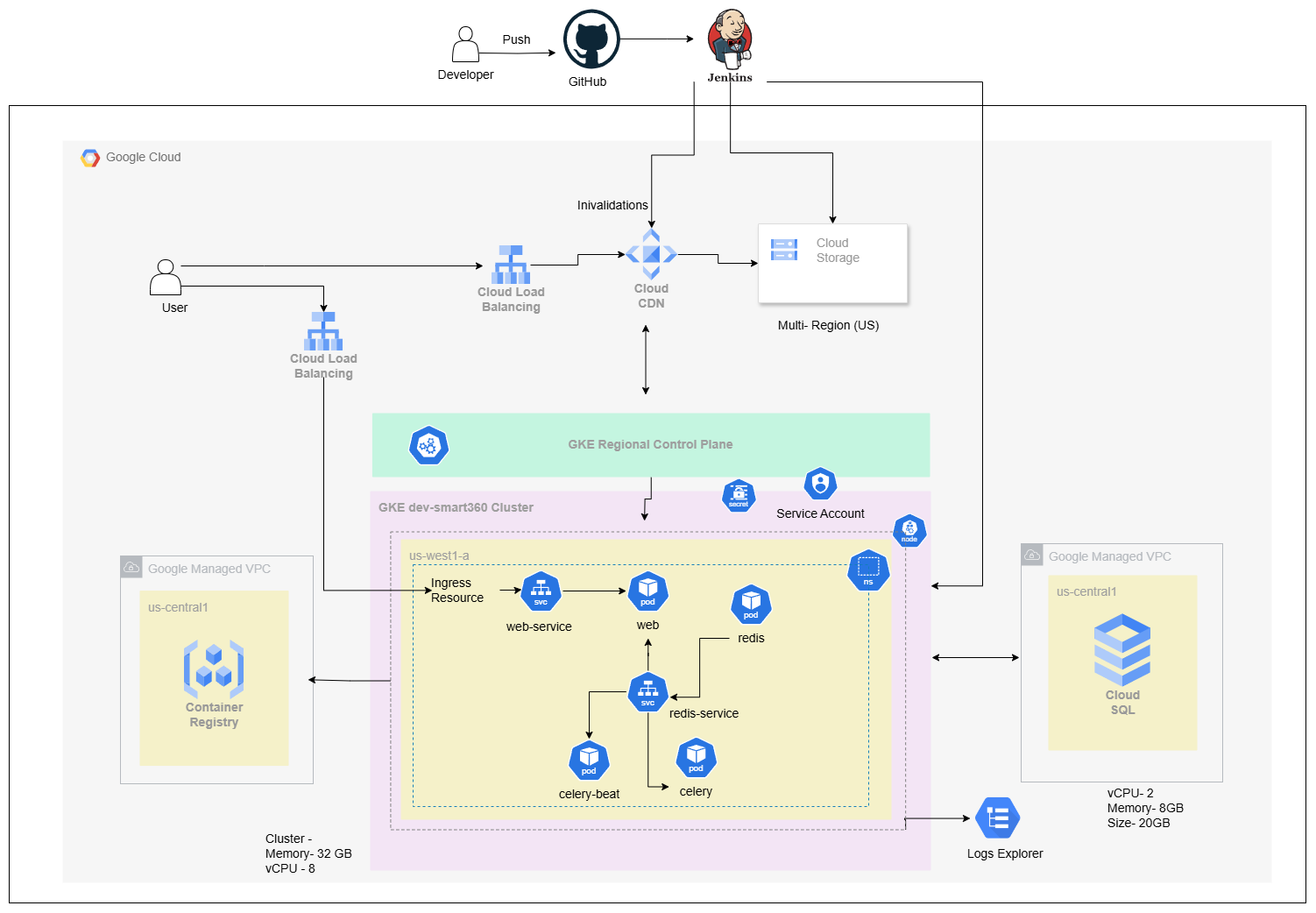

Architecture Diagram

Technology Stack

• Frontend: React 18
• Backend: Django 4.2.7 with Django REST Framework
• Container Orchestration: Google Kubernetes Engine (GKE) Standard Mode
• Caching: Redis
• Database: PostgreSQL (Single instance per environment)
• CI/CD: Jenkins
• Cloud Provider: Google Cloud Platform
• Load Balancing: Google Cloud Load Balancer
• CDN: Google Cloud CDN
• Storage: Google Cloud Storage (Static files)
• Monitoring: Google Cloud Console & Monitoring

Communication Architecture

• React frontend communicates with Django backend via REST APIs
• Redis is used for caching to improve application performance
• Frontend : Static files (React build artifacts) are served via Cloud CDN

Prerequisites

Required Tools and Access

• Google Cloud SDK (gcloud CLI)
• kubectl command-line tool
• Docker
• Jenkins access with Jenkinsfile configuration
• GitHub repository access
• Required GCP IAM permissions for:
• • GKE cluster management
  • Container Registry access
  • Cloud Storage management
  • Load Balancer configuration

GCP Services Enabled

• Google Kubernetes Engine API
• Cloud Load Balancing API
• Cloud CDN API
• Cloud Storage API
• Cloud SQL API
• Container Registry API
• Cloud Logging API
• Cloud Monitoring API
• Google Cert Manager

Infrastructure Components

Google Cloud Project Setup

Regions: us-central1 (Multi-Region US)

Environments: Development and Staging

Google Kubernetes Engine (GKE) Clusters

Development Environment

• Cluster Name: dev-smart360-gke
• Mode: GKE Standard
• Location: us-central1
• Environment: Development
• Domain: platform-dev.bynry.com

Staging Environment

• Cluster Name: qa-smart360-gke
• Mode: GKE Standard
• Location: us-central1
• Environment: Staging
• Domain: platform-staging.bynry.com

Networking

VPC Configuration

• VPC: Google Managed VPC (Default VPC)
• Load Balancing: Cloud Load Balancing with Application Load Balancer (ALB)
• CDN: Cloud CDN for static file delivery
• SSL/TLS: Google-managed SSL certificates

Platform DNS Configuration

• Development: platform-dev.bynry.com
• Staging: platform-staging.bynry.com
